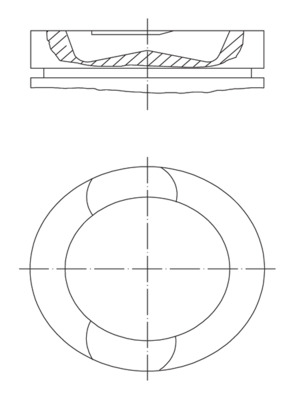

Picture of Piston - MAHLE - 209 73 00

Piston - MAHLE - 209 73 00

Mahle 123.01mm Ring Set 1 Cylinder Renault Trucks

SKU: M2097300

Be the first to review this product

In stock

€665.98 incl vat

Qty:

Cross reference numbers
Attribute

VOLVO: 20860236; 20860237; 209 581 15;
RENAULT TRUCKS: 20577661; 20957267; 21280618; 7421280618;

Length [mm]: 114,4 mm
Cylinder Bore [mm]: 123,01 mm
Surface: Coated
Machined: with cut-out for oil jet
Bolt Head Diameter [mm]: 54 mm
Component Number: 1. T3.5 IF PVD
Component Number: 1.T3.5 4.7 IF P
Component Number: 2. M 2.5 IFU N
Component Number: 2.M2.5 4.5 IFU
Component Number: 3. DSF 3.00 N
Component Number: 3.DSF3.00 3.39
Production Number: 123 MT 09
Compression Height [mm]: 78,4 mm
Recess Diameter [mm]: 83,6 mm
Bolt Length [mm]: 73 mm
Recess Depth 1 [mm]: 16,9 mm
Valve Pocket Depth 1 [mm]: 1 mm
Connecting Rod Design: Trapezoidal Connecting Rod
Packaging length [cm]: 13,2 cm
Packaging width [cm]: 13,20 cm
Packaging height [cm]: 19,00 cm
Piston Clearance [mm]: 0,07 mm
Net Weight [g]: 4240 g
